Gamma Converter Tool - KNX Converter Library

First install the package KNX Converter Library.
This enables the following applications to convert files:

- Gamma Converter Tool
- Import function KNX/DALI Gateway
- ETS App GAMMA Converter App (see KNX Online Shop)


The KNX Converter Library has an update manager (Software manager via internet), which informs the user about new updates.
Konverter
Title

Download

KNX Converter Library (Setup file) V4.8 (10/2020)
 Release notes
This software is subject to the License Agreement included; please read this agreement carefully and confirm your approval by clicking the button at the end of the pop-up page.

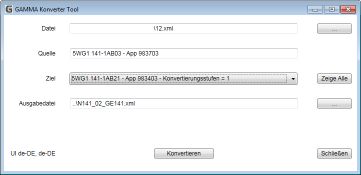

The GAMMA Converter Tool compiles the XML file of a source device (GE 141, N 141/02) to another xml file of a target device (N 141/03, N141/21, N141/31).



Konverter
Title

Download

Gamma Converter Tool (Setup file) V3.1

This software is subject to the License Agreement included; please read this agreement carefully and confirm your approval by clicking the button at the end of the pop-up pages.


Supported devices:

5WG1 141-4AB01 EIB/DALI Gateway GE 141
5WG1 141-1AB01 instabus/DALI Gateway N 141
5WG1 141-1AB02 KNX/DALI Gateway N 141/02
5WG1 141-1AB03 KNX/DALI Gateway plus N 141/03
5WG1 141-1AB21 KNX/DALI Gateway Twin plus N 141/21
5WG1 141-1AB31 KNX/DALI Gateway Twin N 141/31
5WG1 512-1AB11 Switching Actuator, Main module N 512/11


Newer devices have more functions.
Especially the migration from e.g. GE 141 to N 141 requires the usage of the converter to achieve a rapid commissioning.
.


Convertings for GAMMA Converter Tool and KNX/DALI Gateway Applications N141/21, N141/31 und N141/03



Convertings for ETSApp GAMMA Converter App



ETS 2: (only with ETS2 Export Tool )

For ETS2, GE 141 Applications 801802, 801803, 801805 use first „ETS2 Export Tool“.
The generated XML file can be used with GAMMA Converter Tool..

5WG1 141-4AB01 - App 801802 Export Tool 5WG1 141-1AB02 - App 981C0C
5WG1 141-4AB01 - App 801803 Export Tool 5WG1 141-1AB02 - App 981C0C
5WG1 141-4AB01 - App 801805 Export Tool 5WG1 141-1AB02 - App 981C0C
